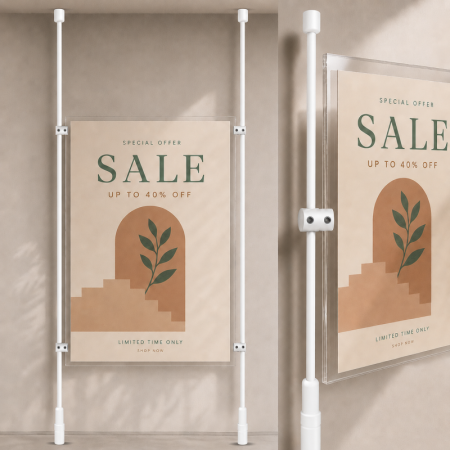

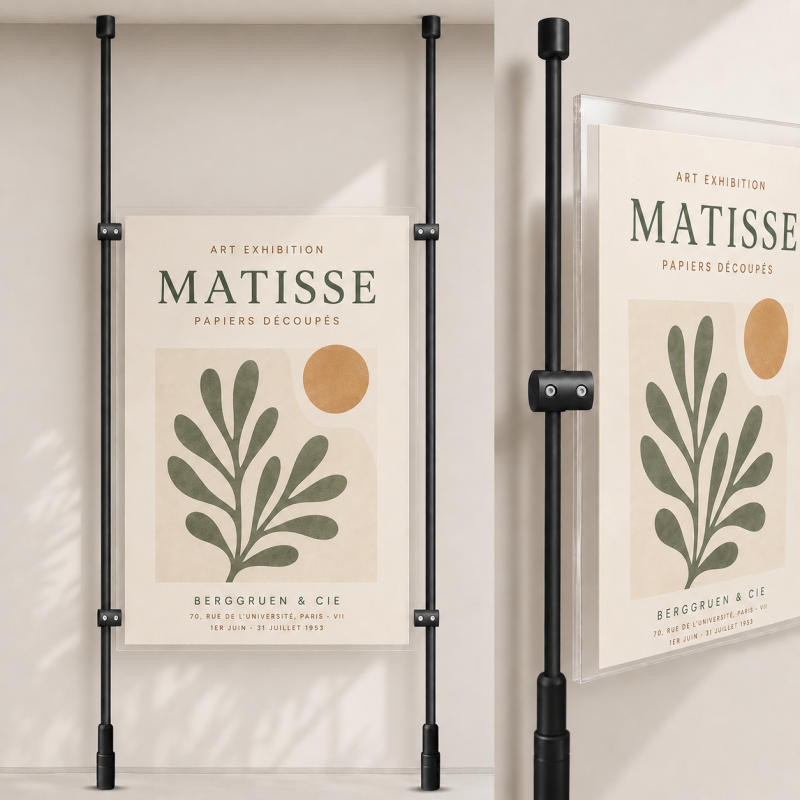

A0 Ceiling to Floor Mounted Rod Display System

• The A0 Ceiling to Floor Rod Display Kit is supplied as a complete kit and is ready to install.
• The system is securely fixed between the ceiling and floor, creating a strong and professional display suitable for both permanent and temporary installations.
• Ideal for estate agent window displays, retail promotions, showrooms, exhibitions, schools, restaurants, cafés, canteens, offices, and reception areas, this versatile display system provides maximum visibility while maintaining a clean and modern appearance.
• Changing posters is quick and easy. Simply open the acrylic pocket from the top by hand, remove the existing poster, and slide in the new one. No screws or tools are required.
• Additional easy-access poster pockets can be added at any time using extra panel supports, allowing the display to be expanded as your requirements change.
• The rod is securely fixed into both the ceiling and floor fittings, providing excellent stability while maintaining a sleek and professional finish.

Kit includes:

• 2 x 6mm Rod (1.5m long)
• 2 x Ceiling to Floor fixing

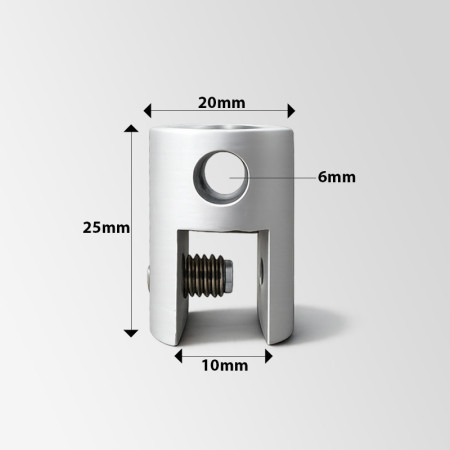

• Rod panel supports (Each panel 4 Supports)
• A0 Acrylic Panel (Chosen Quantity)

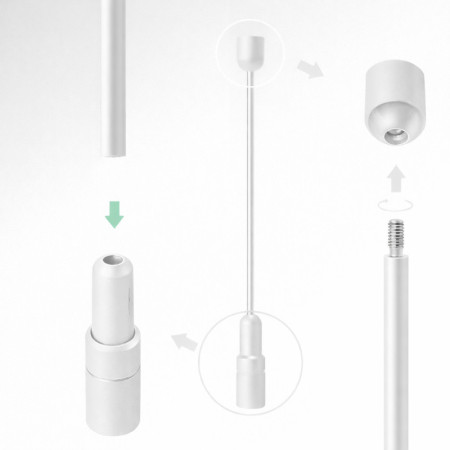

Installation Instructions:

• Unscrew the ceiling fixing. It will separate into two parts: Brass fixing & Chrome cap.
• Unscrew the floor fixing. It will also separate into two parts: Top part & Bottom part.
• Screw the brass fixing securely into the ceiling.
• Tighten the chrome cap onto the brass fixing so that the brass part is completely hidden inside the chrome cap.
• Screw the rod into the ceiling chrome cap. The chrome cap contains an internal thread for attaching the rod.
• Pass the rod through the top part of the floor fixing and suspend it vertically.
• Cut the rod to the required length if necessary.
• Screw the bottom part of the floor fixing securely into the floor.
• Tighten the top part of the floor fixing onto the bottom part to secure the rod firmly in position.

Dimensions:

• Portrait A0 Width 841MM x Height 1189MM
• Landscape A0 width 1189MM x Height 841MM
