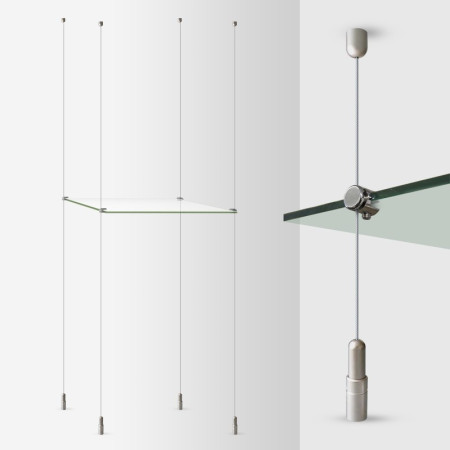

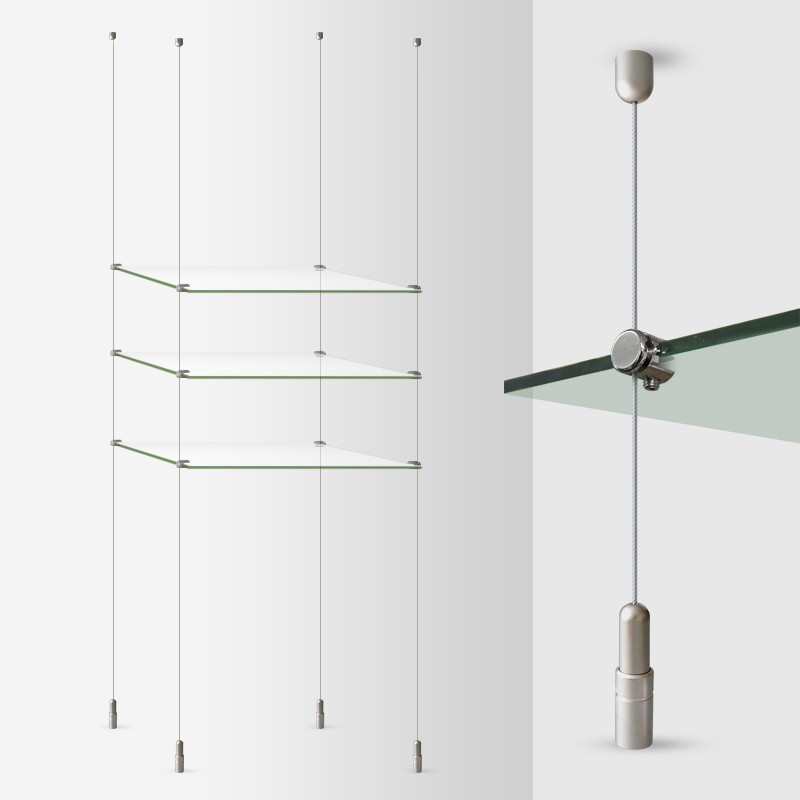

Suspended Shelf Kit (No Glass)

• This suspended shelving kit enables you to establish an elegant display in your shop window or interior.
• Shelves can be adjusted to any desired height.
• It is perfect for use in retail shops and stores, beauty salons, opticians, medical centres, and similar establishments.
• To assemble a single column unit, you will need four ceiling-to-floor fixings and four shelf supports for each shelf.
• This system allows you to avoid making additional holes in the glass.
• Adding or removing shelves in the suspended shelf system is straightforward, as you only need to slot in the cable and tighten the screw.
• This support even permits you to insert a new shelf between two existing shelves without disturbing the items on the upper and lower shelves.

Installation guide:

• Un tight ceiling part it will split in to 2 pieces. Similarly un tight floor part it will also split in to 2 pieces.
• Screw Brass part in to the ceiling and tight 2nd part on it so brass would be hidden under the chrome cap.
• Suspend cable from ceiling part & pass through from the cap of the bottom part. Cut the cable to size attach the cylinder at the end of the cable by tightening the cylinder screws.
• Lastly screw the bottom part of floor fitting into the floor and top part tight in it. Spring inside the top part of floor fixing give tension to the cable and make the cable straight & tight.
• Install 4 cables ceiling to floor to make column & attach 4 panel supports per shelf 2 on left cable & 2 on right cable. You can add as many as you like easy shelves on above and other with shelf clamps

Kit Included:

• 1 Shelf kit:     4 x Ceiling to Floor (4m steel cable which you can cut to size) + 4x Wire shelf Support (Screws & wall plugs are included)
• 2 Shelves kit: 4 x Ceiling to Floor (4m steel cable which you can cut to size) + 8x Wire shelf Support (Screws & wall plugs are included)
• 3 Shelves kit: 4 x Ceiling to Floor (4m steel cable which you can cut to size) + 12x Wire shelf Support (Screws & wall plugs are included)
• 4 Shelves kit: 4 x Ceiling to Floor (4m steel cable which you can cut to size) + 16x Wire shelf Support (Screws & wall plugs are included)
