Ceiling to Wall Cable Set

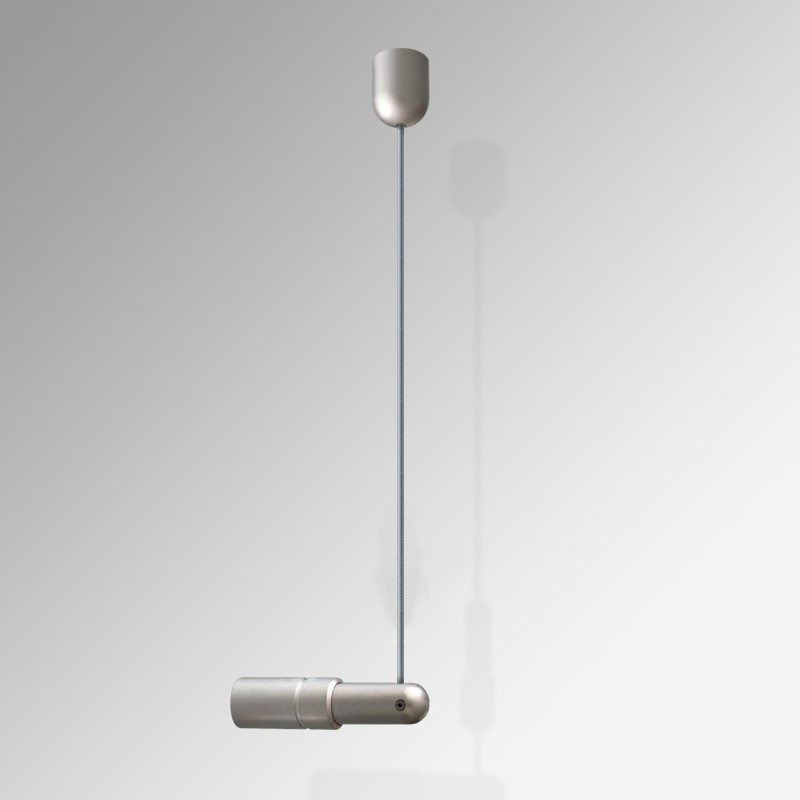

• Cable Display Ceiling to Wall With 4 Meter adjustable cable. Available in satin chrome and polish chrome finish.

How to Install:

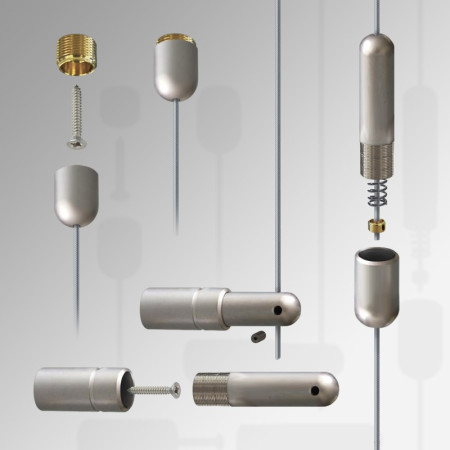

• Un tight the ceiling cable split in to 2 pieces. Screw brass part in to the ceiling with screw.
• Tight chrome part on brass part & suspend cable.(You can cut the steel wire rope to size)
• Next, separate the Floor Fitting into two parts (1 'Floor Mount' and 1 'Chrome Floor Cover' equipped with Spring & Cable').

• With the cable now hanging straight, you may proceed to mark and install the 'Floor Mount' at the appropriate location on the floor. Following this, partially secure the 'Chrome Floor Cover' with the cable properly attached back onto the 'Floor Mount'.

• If the cable remains loose while the 'Chrome Floor Cover' is partially secured, loosen the 'Grub Screw' located on the side of the Wall Fitting's 'Chrome Cover', and draw more cable through it. Once the cable is taut, tighten the 'Grub Screw' and secure the 'Chrome Floor Cover' until the cable is tight!It is imperative that the cable is taut before the 'Chrome Floor Cover' is fully fastened onto the 'Floor Mount' to ensure the Tension 'Spring' functions effectively! Any excess cable can be trimmed for a tidy finish. DO NOT cut any cable until you are completely confident that the system has been installed correctly!
